VitroGel® MMP High Concentration

Matrix metalloproteinases (MMP) sensitive biodegradable hydrogel – tunable, xeno-free hydrogel, high concentration (3 mL kit)

Dilution solution type to include with the hydrogel *

Dilution solution to adjust the hydrogel concentration for different hydrogel strength.

Product price
Additional options total:
Order total:

SKU: TWG010 Category:

$449.00

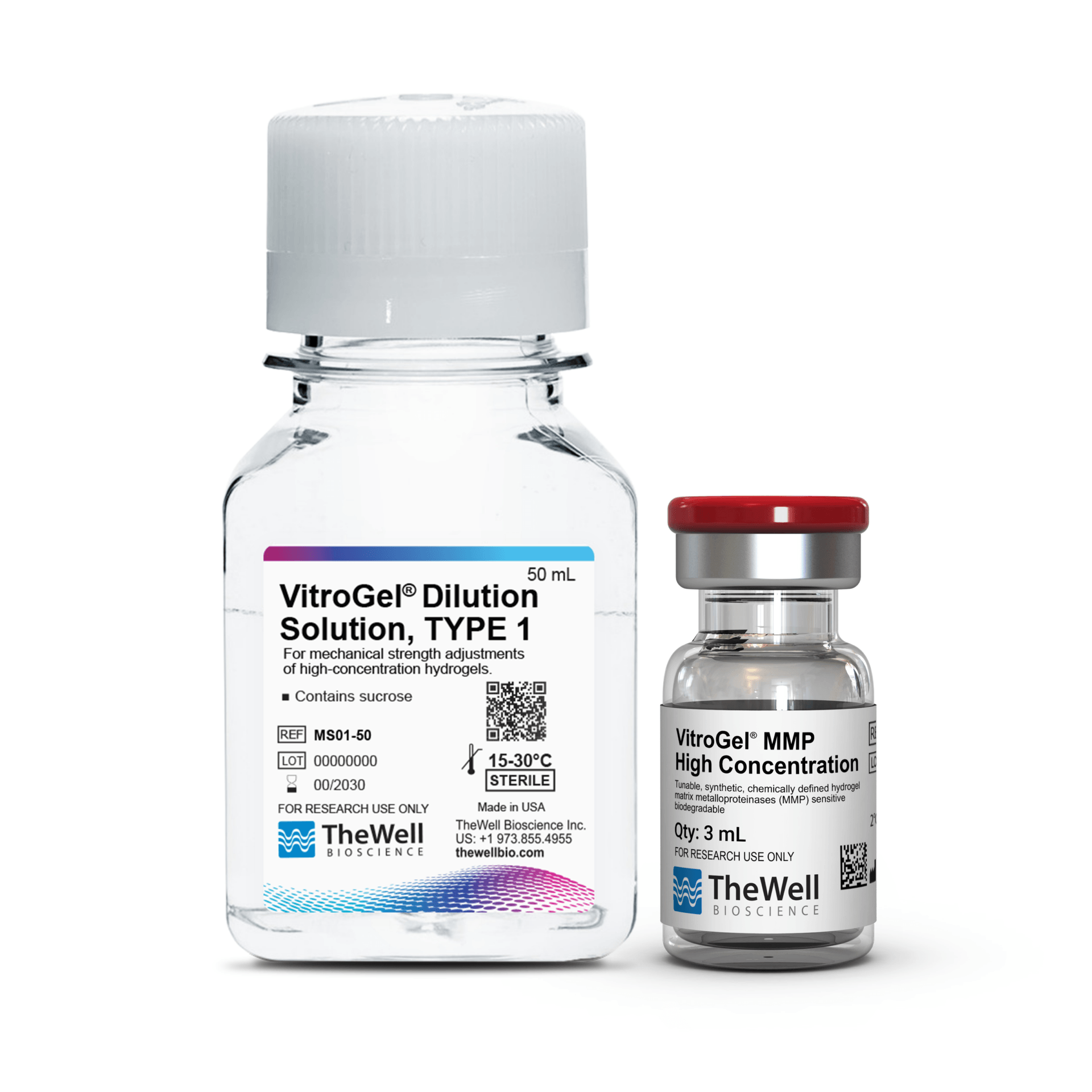

VitroGel MMP High Concentration

VitroGel® MMP High Concentration is a tunable, xeno-free (animal origin-free) hydrogel system modified with matrix metalloproteinase-sensitive peptides. The enzyme-sensitive hydrogel can be degraded by several MMPs (MMP1, MMP2, MMP3, MMP9, and MMP13) and support different biological activities such as cell proliferation, migration (adhesion/dispersion), differentiation, angiogenesis, apoptosis, etc.  VitroGel MMP High Concentration comes with VitroGel Dilution Solution to adjust the final hydrogel strength from 10 to 4000 Pa.

VitroGel High Concentration hydrogels are our xeno-free, tunable hydrogels for researchers wanting full control to manipulate the biophysical and biological properties of the cell culture environment. The tunability of the hydrogel gives the ability to create an optimized environment for cell growth. The hydrogel system has a neutral pH, transparent, permeable, and compatible with different imaging systems. The solution transforms into a hydrogel matrix by simply mixing with the cell culture medium. No cross-linking agent is required. Cells cultured in this system can be easily harvested with our VitroGel® Cell Recovery Solution. The hydrogel can also be tuned to be injectable for in vivo studies.

From 3D cell culture, 2D cell coating to animal injection, VitroGel makes it possible to bridge the in vitro and in vivo studies with the same platform system.

Mix & Match – 3D Cell Culture Your WAY!

Unique to VitroGel High Concentration hydrogels is the ability to customize a multi-functional hydrogel by blending different types of VitroGel.  VitroGel® MMP can be “mix & matched” with other versions of VitroGel such as VitroGel® RGD, VitroGel® YIGSR, VitroGel® IKVAV and VitroGel® COL to create a customized multi-functional hydrogel. Using this flexible and powerful hydrogel system, scientists can tailor create their 3D culture micro-environment for different applications.

Learn more about the “Mix & Match” features >

Specifications

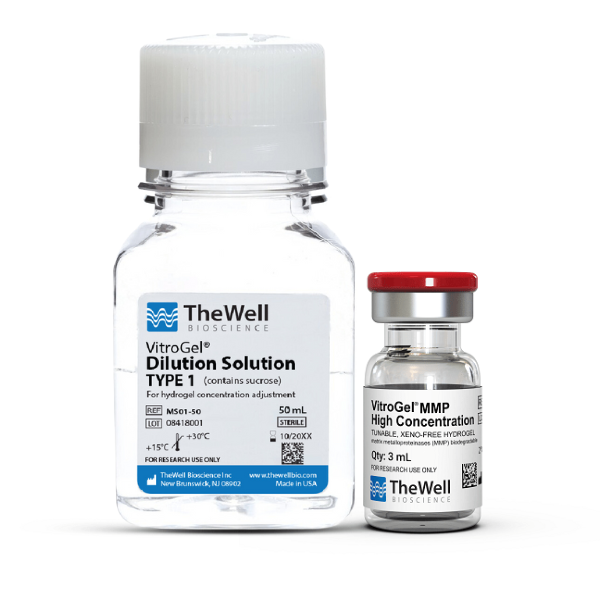

ContentsVitroGel® MMP High Concentration, 3 mL
VitroGel® Dilution Solution, 50 mL
Hydrogel FormulationXeno-free tunable hydrogel modified with matrix metalloproteinases sensitive peptide.
HIGH CONCENTRATION
UseMMP sensitive biodegradable hydrogel.
Mix & MatchCan be blended with other versions of VitroGel to create a multi-functional hydrogel
OperationRoom temperature
Hydrogel Strength10 to 4,000 Pa of G’ depending on dilution ratio.
Dilute with VitroGel Dilution Solution (TYPE 1 or TYPE 2) for different concentrations.
pHNeutral
ColorTransparent
Cell Harvesting20 min cell recovery using VitroGel Cell Recovery Solution
InjectableInjectable hydrogel
StorageStore at 2-8°C. Ships at ambient temperature
Number of UsesDilution ratio:
1:2 = 225 uses at 50 µL per well
1:3 = 300 uses at 50 µL per well
1:5 = 450 uses at 50 µL per well

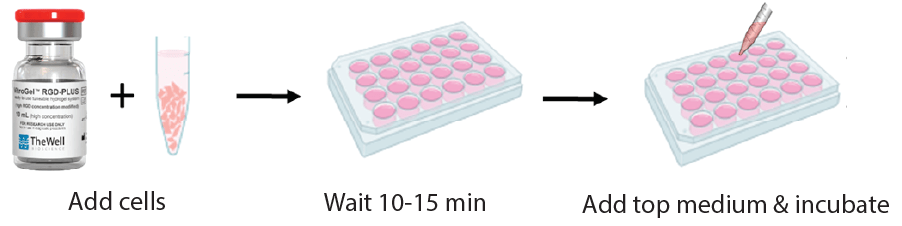

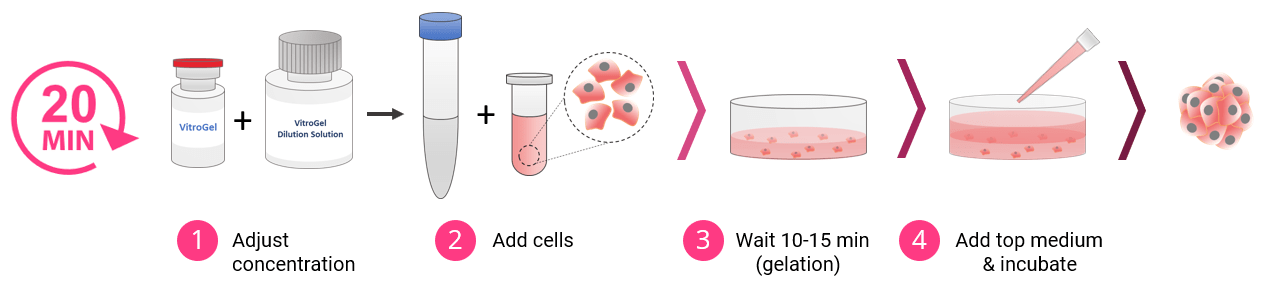

3D Cell Culture Process in 20 Minutes

VitroGel High Concentration hydrogels are easy to use. There is no cross-linking agent required. Work confidently at room temperature.

Tunable Hydrogel Strength

Simply diluting the hydrogel controls the gel strength.

Handbooks and Resources

Video Protocols & Demonstrations

VIDEO PROTOCOL TIP

VIDEO PROTOCOL TIP

VIDEO PROTOCOL TIP

VIDEO PROTOCOL TIP

VIDEO PROTOCOL TIP

VIDEO PROTOCOL TIP

Data and References

Cell Type Behavior Reference Table for VitroGel MMP

Multiple examples of immobilized, conjugated MMP substrate peptides in hydrogels in different tissue and cell type. MMPs activity is critical in remodeling the extracellular matrix. Hydrogels with MMP substrate peptides incorporated allow for the study of MMP activity in multiple cell types.

Cell Behavior List for VitroGel MMP
Tissue/Organ TypeCell TypeBehavior
BreastMammary gland MCF10AIncreased MMP activity in response to TGF-ß1
Cancer/tumorBreast MDA-MB-231 Enhanced cell invasion
Glioma U87Support cell growth, spreading, and migration
Melanoma WM239A Promoted cell invasion
Connective tissueHuman foreskin fibroblastsIncreased radial cell migration
Human foreskin fibroblastsIncreased cell invasion and substrata degradation
Stem cellsHuman mesenchymal stem cellsIncreased cell differentiation marker expression
Human mesenchymal stem cellsPromoted neuronal differentiation and neurite outgrowth
Human mesenchymal stem cellsIncreased cell spreading, traction forces, and differentiation
Mouse mesenchymal stem cellsIncreased cell spreading and migration
VascularHuman umbilical vein endothelial cellPromoted cell adhesion, migration, and survival
Human umbilical vein endothelial and umbilical artery smooth muscle cellsIncreased aggregate cell invasion toward gradient of peptide
Human umbilical vein endothelial cellsIncreased cell invasion
All Cell Type Behaviors for All VitroGel Products
Tissue/Organ typeCell TypeRelate productBehavior
Beta cellBL5 human beta cellsVitroGel Hydrogel Matrix, VitroGel 3DEnhance spheroids and cluster formation and promote cell viability.
Beta TC3 cellsVitroGel Hydrogel Matrix, VitroGel RGDCell proliferation and cellular interations
BoneBone marrow stromal cells (rat)VitroGel Hydrogel Matrix, VitroGel RGDOsteogenesic differentiation
VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation, cell viability, and cellular networking
VitroGel Hydrogel Matrix, VitroGel COLCell attachment and osteoblast differentiation
Bone marrow mesenchymal stem cells (human)VitroGel Hydrogel Matrix, VitroGel COLChondrogenic/osteogenic differentiation
VitroGel Hydrogel Matrix, VitroGel IKVAVAngiogenesis
VitroGel Hydrogel Matrix, VitroGel COLCell spreading, proliferation, and collagen II production
Bone marrow mesenchymal stem cells (goat)VitroGel Hydrogel Matrix, VitroGel RGDOsteogenesic differentiation
Osteoblasts (rat)VitroGel Hydrogel Matrix, VitroGel RGDCell attachment and spreading
Bone marrow stromal cells (bovine)VitroGel Hydrogel Matrix, VitroGel COLCell spreading and osteocalcin expression
BreastMammary gland MCF10AVitroGel Hydrogel Matrix, VitroGel MMPMMP activity in response to TGF-ß1
Mammary epithelium (mouse)VitroGel Hydrogel Matrix, VitroGel COLCell invasion and dissemination
Cancer/tumorHuman colorectal carcinoma HCT 116VitroGel Hydrogel Matrix, VitroGel RGDcell proliferation, cell survival, and intercelluar networking
Huaman colon carcinoma HCT-8VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation and cell matirx interaction
Glioma U87-MGVitroGel Hydrogel Matrix, VitroGel RGDCell spreading and actin stress fiber assembly
VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation and cell matirx interaction
VitroGel Hydrogel Matrix, VitroGel COLCell migration dependent on mechanical force
VitroGel Hydrogel Matrix, VitroGel MMPcell proliferation, spreading, and migration
Primary glioblastom U87VitroGel Hydrogel Matrix, VitroGel RGDcell proliferation and cellular interations
Glioblastoma SF 268VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation and cell matirx interaction
Glioblastoma SF 295VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation and cell matirx interaction
Glioblastoma SNB75VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation and cell matirx interaction
Glioblastoma U-251 MGVitroGel Hydrogel Matrix, VitroGel RGDCell proliferation and cell matirx interaction
Prostate PC3VitroGel Hydrogel Matrix, VitroGel COLCell proliferation and reduced MMP release
VitroGel Hydrogel Matrix, VitroGel IKVAVcell proliferation and invasion
VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation and invasion
VitroGel Hydrogel Matrix, VitroGel COLCell invasion, migration, and spheroid metabolic activity
Prostate LNCaPVitroGel Hydrogel Matrix, VitroGel RGDCell attachment
VitroGel Hydrogel Matrix, VitroGel COLCell proliferation and prostate specific antigen release
Prostate CRPCVitroGel Hydrogel Matrix, VitroGel RGDCell proliferatin and invasion
Prostate DU145VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation and invasion
Melanoma B16F10VitroGel Hydrogel Matrix, VitroGel COLCell migration, invasion, and MMP release
VitroGel Hydrogel Matrix, VitroGel YIGSRCell attachment and spreading
Breast MDA-MB-231VitroGel Hydrogel Matrix, VitroGel MMPCell invasion
VitroGel Hydrogel MatrixCell spreading
VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation, division, migration, and invasion
VitroGel Hydrogel Matrix, VitroGel COLCell spreading and cluster growth
Fibrosarcoma HT1080VitroGel Hydrogel Matrix, VitroGel COLCell infiltration
VitroGel Hydrogel Matrix, VitroGel COLCell attachment
Breast T47D VitroGel Hydrogel Matrix, VitroGel COLForce dependent tubule formation
VitroGel Hydrogel MatrixCell cluster growth
VitroGel Hydrogel Matrix, VitroGel 3DSpheroid formation and proliferation
VitroGel Hydrogel Matrix, VitroGel COLCell cluster growth
Breast 4T1VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation
Breast CTCVitroGel Hydrogel Matrix, VitroGel 3DCell proliferation
Breast E0771VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation, spheroid formation
Breast AU-565VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation, cell matrix interations
Epithelial ovarian OV-MZ-6VitroGel Hydrogel Matrix, VitroGel RGDSpheroid formation and proliferation
Epithelial ovarian SKOV-3VitroGel Hydrogel Matrix, VitroGel RGDSpheroid formation and proliferation
Glioma U373-MGVitroGel Hydrogel Matrix, VitroGel RGDCell adhesion and migration
Rhabdomyosarcoma (human)VitroGel Hydrogel Matrix, VitroGel YIGSRCell attachment and spreading
Melanoma SK-MEL-28VitroGel Hydrogel Matrix, VitroGel IKVAVCell adhesion and proliferation
Melanoma K-1735VitroGel Hydrogel Matrix, VitroGel IKVAVCell invasion
Melanoma A2058VitroGel Hydrogel Matrix, VitroGel IKVAVCollagenolytic activity
Brainstem glioma DIPGVitroGel Hydrogel Matrix, VitroGel 3DCell proliferation and survival
Hela CellsVitroGel Hydrogel Matrix, VitroGel 3DCell proliferation
Colorectal adenocarcinoma DLD-1 cellsVitroGel Hydrogel Matrix, VitroGel RGDCell proliferation and cell matirx interaction
Glioma LRM55VitroGel Hydrogel Matrix, VitroGel IKVAVCell attachment
Melanoma WM239AVitroGel Hydrogel Matrix, VitroGel MMPCell invasion
Melanoma CellsVitroGel Hydrogel Matrix, VitroGel RGDCell proliferation and cell matirx interaction
Insulinoma ins-1 (Rat)VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation and cell matirx interaction
HEK 293VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation and cell matirx interaction
Biphasic synovial sarcoma SYO-1VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation, cell matirx interaction, and cell survival
Fuji CellsVitroGel Hydrogel Matrix, VitroGel RGDCell proliferation and cell matirx interaction
Chordoma CellsVitroGel Hydrogel Matrix, VitroGel 3DCell proliferation
Bone OSA 1777VitroGel Hydrogel Matrix, VitroGel RGDspheroid and cluster formation
Glioma RuGliVitroGel Hydrogel Matrix, VitroGel COLIntegrin dependent cell adhesion
Breast Cancer MCF-7VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation, intercellular connections
VitroGel Hydrogel Matrix, VitroGel COLCell proliferation, morphological changes, MMP expression, and angiogenesis
Liver carcinoma HepG2VitroGel Hydrogel Matrix, VitroGel COLCell viability, growth, and drug resistance
VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation and cell matirx interaction
Human pancreatic cancer PANC-1VitroGel Hydrogel Matrix, VitroGel RGDcell proliferation and cellular interations
Primary breast (human)VitroGel Hydrogel Matrix, VitroGel COLCell invasion, migration, and dissemination
Ovarian carcinoma OVCAR-3VitroGel Hydrogel Matrix, VitroGel RGDCell proliferation, cell matrix interations
Ovarian OVCA429VitroGel Hydrogel Matrix, VitroGel COLMMP dependent cell invasion
Human osteosarcoma KHOSVitroGel Hydrogel Matrix, VitroGel 3Dcell proliferation and spheroids formation
Human osteosarcoma U2OSVitroGel Hydrogel Matrix, VitroGel 3Dcell proliferation and spheroids formation
Priess human lymphoblastoid cellsVitroGel Hydrogel Matrix, VitroGel 3DEnhance spheroids and cluster formation and promote cell viability.
CartilageChondrocytes (bovine)VitroGel Hydrogel Matrix, VitroGel RGDCell viability and proliferation
Chondrocytes (human)VitroGel Hydrogel Matrix, VitroGel RGDCell viability and proliferation
Connective tissueDermal fibroblasts (human)VitroGel Hydrogel Matrix, VitroGel RGDCell viability and spreading
VitroGel Hydrogel Matrix, VitroGel COLCell viability
Fibroblasts NIH3T3VitroGel Hydrogel Matrix, VitroGel RGDDirectional cell migration toward gradient
VitroGel Hydrogel Matrix, VitroGel COLCell spreading dependent on substrata rigidity
Foreskin fibroblasts (human)VitroGel Hydrogel Matrix, VitroGel RGDCell spreading
VitroGel Hydrogel Matrix, VitroGel YIGSRCell spreading
VitroGel Hydrogel Matrix, VitroGel MMPSubstrata degradation and cell invasion
Skin fibroblasts (skin)VitroGel Hydrogel Matrix, VitroGel IKVAVCell adhesion
Epidermal keratinocytesVitroGel Hydrogel Matrix, VitroGel COLCell viability
Epithelial CellsMouse ovarian follicle cellsVitroGel Hydrogel Matrix, VitroGel RGD3D cell culture using ES-hydrogel can enhance vitro follicle culture by considering the permeability and stiffness of the gel.
Human Nthy-ori 3-1 cellsVitroGel Hydrogel Matrix, VitroGel 3DEnhance spheroids and cluster formation and promote cell viability.
A549 cellsVitroGel Hydrogel Matrix, VitroGel RGDEnhance cell proliferation and cell matrix interactions.
MCF-12AVitroGel Hydrogel Matrix, VitroGel RGDEnhance cell proliferation and cell matrix interactions.
Immortalized bronchial epithelial cells HBEC-KRASVitroGel Hydrogel Matrix, VitroGel 3DCell proliferation
EyeCorneal endothelial B4G12VitroGel Hydrogel Matrix, VitroGel COLCell attachment and spreading
Retinal ganglion cells (xenopus)VitroGel Hydrogel Matrix, VitroGel COLNeurite outgrowth
Immune CellsCD8 + T cellsVitroGel Hydrogel Matrix, VitroGel 3DEnhance spheroids and cluster formation and promote cell viability.
KidneyHuman embryonic kidney HEK293VitroGel Hydrogel Matrix, VitroGel RGD3D spheroids formation
VitroGel Hydrogel Matrix, VitroGel COLCell proliferation and cluster growth
Madin-Darby Canine KidneyVitroGel Hydrogel Matrix, VitroGel RGDEpithelial cysts formation
podocytes (human)VitroGel Hydrogel Matrix, VitroGel COLGlomerular capillary formation
glomerular endothelial cells (human)VitroGel Hydrogel Matrix, VitroGel COLGlomerular capillary formation
LiverHepatocytes (human)VitroGel Hydrogel Matrix, VitroGel RGDFilopodia formation and synthesis of albumin
VitroGel Hydrogel Matrix, VitroGel COLCell attachment
Hepatocytes (mouse)VitroGel Hydrogel Matrix, VitroGel RGDCell viability
Hepatocytes (rat)VitroGel Hydrogel Matrix, VitroGel COLAlbumin secretion
Hepatocytes (swine)VitroGel Hydrogel Matrix, VitroGel COLCell spreading and albumin section
LungAlveolar basal epithelial A549VitroGel Hydrogel Matrix, VitroGel RGDCell attachment
Alveolar epithelial RLE-6TNVitroGel Hydrogel Matrix, VitroGel RGDCell attachment and mesenchymal differentiation
Pulmonary fibroblasts LL2VitroGel Hydrogel Matrix, VitroGel IKVAVCell adhesion
HFL1 lung fibroblasts CCL153VitroGel Hydrogel Matrix, VitroGel COLCell proliferation and spindle morphology
Lung cancer associated fibroblasts (human)VitroGel Hydrogel Matrix, VitroGel COLSubstrata contractility
Lung fibroblasts MCR-5VitroGel Hydrogel Matrix, VitroGel COLNGF-mediated substrata contraction
MuscleMyoblasts C2C12VitroGel Hydrogel Matrix, VitroGel RGDCell Proliferation and differentiation
VitroGel Hydrogel Matrix, VitroGel COLCell attachment, proliferation, and myofibril formation
VitroGel Hydrogel MatrixMyotube formation
VitroGel Hydrogel Matrix, VitroGel COLIntegrin dependent cell adhesion
Skeletal myoblasts (mouse)VitroGel Hydrogel Matrix, VitroGel RGDCell attachment, proliferation, and myofibril formation
Myoblasts (human)VitroGel Hydrogel Matrix, VitroGel COLCell adhesion, alignment along fiber, and myotube formation
Myoblasts C25Cl48VitroGel Hydrogel Matrix, VitroGel COLCell proliferation, differentiation and myotube formation
NeuralDorsal root ganglion (chick)VitroGel RGDNeurite formation and outgrowth
VitroGel COLForce dependent neurite outgrowth
Neural PC12VitroGel COLNeurite outgrowth
VitroGel IKVAVNeurite outgrowth
Neural stem cell/progenitor cell (rat)VitroGel YIGSRCell viability
VitroGel IKVAVCell attachment and differentiation
Neural stem cell/progenitor cell (human)VitroGel IKVAVCell viability and differentiation
VitroGel LDP1Cell viability and differentiation
VitroGel LDP1Cell viability
VitroGel COLCell attachment
Schwann cells (rat)VitroGel YIGSRCell attachment and migration
Neural stem cell/progenitor cell (mouse)VitroGel IKVAVCell adhesion and differentiation
Cortical astrocytes (rat)VitroGel IKVAVCell adhesion
Spiral ganglion neurons (mouse)VitroGel IKVAVNeurite outgrowth
Motor neurons (human)VitroGel COLForce dependent neurite outgrowth
Forebrain neurons (human)VitroGel COLForce dependent neurite outgrowth
Cortical neurons (rat)VitroGel COLNeuronal viability and neurite outgrowth
Dorsal root ganglion (rat)VitroGel COLNeurite outgrowth
Red Blood CellsRed Blood cellsVitroGel Hydrogel Matrix, VitroGel 3DEnhance spheroids and cluster formation and promote cell viability.
PancreasB-cells MIN6VitroGel Hydrogel Matrix, VitroGel IKVAVReduced apoptosis and increased insulin release
Stem cellsMesenchymal stem cells (human)VitroGel RGDCell viability
VitroGel RGDCell Proliferation and differentiation
VitroGel COLCell proliferation
VitroGel IKVAVNeuronal differentiation
VitroGel MMPNeuronal differentiation and neurite outgrowth
VitroGel COLCell attachment, spreading, viability, and osteoblast differentiation
Mesenchymal stem cells (mouse)VitroGel RGDCell spreading and migration
VitroGel MMPCell spreading and migration
Mesenchymal stem cells (rat)VitroGel RGDCell adhesion and spreading
Embryonic stem cells (mouse)VitroGel RGDEndothelial cell differentiation
VitroGel COLNeuronal differentiation and neurite outgrowth
VitroGel YIGSRNeuronal differentiation
Induced pluripotent stem cells (human)VitroGel YIGSRCell viability
VitroGel IKVAVCell viability
VitroGel LDP1Cell viability
Human IpscVitroGel RGDCell proliferation, and cell matrix interactions
Human stem cells from apical papilla SCAPVitroGel 3DCell viability
Adipose derived stem cells (human)VitroGel IKVAVCell attachment
Vascular/cardiacUmbilical vein endothelial cells (human)VitroGel RGDCell attachment, proliferation, migration, and angiogenesis
VitroGel YIGSRUpregulation in gene expression
VitroGel IKVAVMigratory cell infiltration
VitroGel MMPCell attachment, migration, and survival
VitroGel COLCell attachment, spreading, and VEGF dependent migration
Neonatal cardiac (rat)VitroGel RGDCell attachment and tissue regeneration
VitroGel YIGSRCell attachment similar to laminin
Aortic smooth muscle cells (human)VitroGel RGDCell attachment
Endothelial (human)VitroGel YIGSRCell differentiation
EndotheliocytesVitroGel YIGSRCell migration
Microvascular endothelial cells (human)VitroGel YIGSRCell mobility
Aortic endothelial cells (bovine)VitroGel COLForce dependent cell spreading
Capillary endothelial cells (bovine)VitroGel COLCapillary like network formation

Figure 1.  Rheological properties of VitroGel MMP with RPMI medium.
A) The gel formation curve after mixing with RPMI medium. VitroGel MMP was diluted at 1:1 and 1:3 (v/v) with VitroGel Dilution Solution (Type 1) and then mix with RPMI at 4:1 (v/v) ratio; B) The gel strength after 24 hours incubation. The hydrogel was prepared according to the user handbook at 1:0, 1:1, and 1:3 dilution ratios, and incubated at 37°C CO2 for 24 hours before the rheological test. (10 ~ 4000 Pa of G’ of regular products at dilutions. Customized high concentration product to reach over 20K Pa)

Figure 2. Degradation of VitroGel MMP gel with MMP2 enzyme.
A) The hydrogel was prepared without dilution (1:0 dilution) and incubated for 24 hours before adding MMP2 (1 µg/mL) on the top of the hydrogel. The plate was incubated in a 5% CO2 incubator at 37°C and was shaken using an orbital shaker at 40 rpm. The hydrogel obtains a heterogenous consistency after 24 hours and by day 6, the entire middle section appears degraded.  B) The 1:3 diluted hydrogel was prepared with VitroGel Dilution Solution and incubated as 1:0 diluted hydrogel. The hydrogel appears to have completely dissolved after 6 hours after exposed to MMP2 enzyme. C). The rheological data shows a rapid decline in the elastic modulus of the 1:3 diluted hydrogel over time after adding MMP2 enzyme. The gel was almost completely degraded by the enzyme after 200 mins. The test result demonstrates that VitroGel MMP undergoes an MMP-sensitive degradation. The higher the dilution of the gel, the faster the degradation process.

Figure 3. 3D culture of glioblastoma cells (SNB 75) in VitroGel MMP.
Cells were cultured with 1:3 diluted VitroGel IKVAV according to the user handbook (50% FBS was used to prepare cell suspension to achieve hydrogel with a final 10% FBS concentration).
.

References/Publications

Size

3 mL Kit
